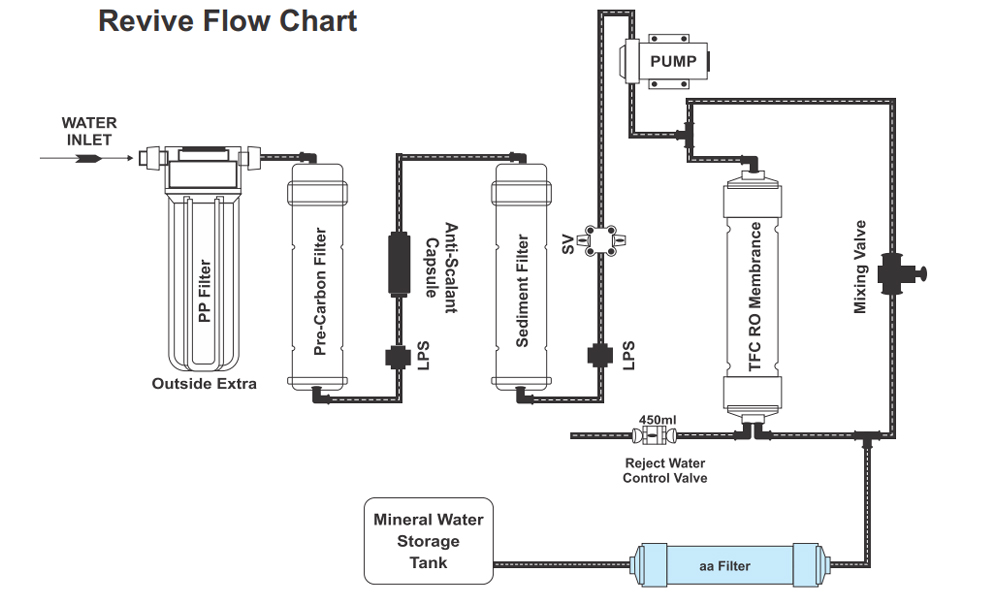

Step 1 : PP Filter (Outside RO):
P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.
Step 2 : Sediment Filter :
Sediment filter remove the solid suspended particle such rust & dust.
Step 3 : Anti-Scalant Capsule:
Anti-Scalant Capsule increase RO Membrane life.
Step 4 : Pre-carbon Filter:
Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.
Step 5 : TFC RO Membrane :
Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.
Step 6 : pH Booster (Alkaline):
pH is a factor that has a vital effect on the blood's capacity to uptake, czarry and derliver to all parts of our body.
Filter Size/ Filter Life | PP Filter | 11"/6 month |
Pre-Carbon | 11"/12 month | |
Sediment | 11"/12 month | |
Membrane | 11"/ 24 month | |
as Filter | 11"/ 12 month(7000 Itr) | |
UV | N/A | |
Power Consumption | With booster pump 100 GPD AC 170-280V, DC 24V(1.8 Lpm) | |
Dimensions (mm) (W x H x D) | 350 x 293 x 600 mm | |
Net Weight | 10kg (221b) | |
Production Capacity | 15 Ltr/hr | |
Tank Capacity | 8 Ltr | |
Water Temperature | 5-45°C | |
MAX TDS | <2000ppm | |
Removal Rate | >90-96% | |
Flush Mode | Automation | |
Inlet Water Pressure | 0.15 - 0.35 Mpa | |
Low Pressure Setting | 0.05 Mpa | |
Auto Flush Time | 18s | |
Main Configuration | 6 Stage + Pump + Auto Flushing | |
As a continuing policy of products innovation at DISPRO, the above mentioned design and specification are subjects to change without any prior at any times |
Step 1 : PP Filter (Outside RO):
P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.
Step 2 : Sediment Filter :
Sediment filter remove the solid suspended particle such rust & dust.
Step 3 : Anti-Scalant Capsule:
Anti-Scalant Capsule increase RO Membrane life.
Step 4 : Pre-carbon Filter:
Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.
Step 5 : TFC RO Membrane :
Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.
Step 6 : pH Booster (Alkaline):
pH is a factor that has a vital effect on the blood's capacity to uptake, czarry and derliver to all parts of our body.
Step 7 : Ultra Violet (Optional Stage):
U.V. has the ability to provide Bacterial Disinfection in water.
Filter Size/ Filter Life | PP Filter | 11"/6 month |
Anti-Scalant | 3.5/12 month | |
Sediment | 11"/12 month | |
Pre-Carbon | 11"/12 month | |
Membrane | 11"/ 24 month | |
(1,900 gal) | ||
80GPD (Hi-Tech) | ||
aa Filter | 11"/12 month(7000 ltr) | |
UV | 8"/24 month(10000 hr) | |
Tank Capacity | 9 Ltr | |
Power Consumption | With booster pump 100 GDP AC 170-280V, DC 24V (1.8 Lpm) | |
Dimensions (mm) (W x H x D) | 12" X 12" X 16" Inch | |
Net Weight | 12.5kg (27.51b) | |
Production Capacity | 15 Ltr/hr | |
Main Configuration | 6 Stage + Pump + U.V. * |
Step 1 : PP Filter (Outside RO):
P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.
Step 2 : Sediment Filter :
Sediment filter remove the solid suspended particle such rust & dust.
Step 3 : Anti-Scalant Capsule:
Anti-Scalant Capsule increase RO Membrane life.
Step 4 : Pre-carbon Filter:
Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.
Step 5 : TFC RO Membrane :
Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.
Step 6 : pH Booster (Alkaline):
pH is a factor that has a vital effect on the blood's capacity to uptake, czarry and derliver to all parts of our body.
Step 7 : Ultra Violet (Optional Stage):
U.V. has the ability to provide Bacterial Disinfection in water.
Filter Size/ Filter Life | PP Filter | 11"/6 month |
Pre-Carbon | 11"/12 month | |
Sediment | 11"/12 month | |
Membrane | 11"/ 24 month | |
as Filter | 11"/ 12 month(7000 Itr) | |
UV | 8"/24 month(10000 hr) | |
Power Consumption | With booster pump AC 170-280V, DC 24V(1.8 Lpm) | |
Dimensions (mm) (W x H x D) | 410 x 275 x 560 mm | |
Net Weight | 12.5kg (27.51b) | |
Production Capacity | 15 Ltr/hr | |
Tank Capacity | 9 Ltr | |
Water Temperature | 5-45°C | |
MAX TDS | <2000ppm | |
Removal Rate | >90-96% | |
Flush Mode | Automation | |
Inlet Water Pressure | 0.15 - 0.35 Mpa | |
Low Pressure Setting | 0.05 Mpa | |
Auto Flush Time | 18s | |
Main Configuration | 7 Stage + Pump + Auto Flushing | |
As a continuing policy of products innovation at DISPRO, the above mentioned design and specification are subjects to change without any prior at any times |
Step 1 : PP Filter (Outside RO)
RP filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.
Step 2 : Pre-carbon Filter
Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.
Step 3 : Anti-Scalant Capsule
Anti-Scalant Capsule increase RO Membrane life.
Step 4 : Sediment Filter
Sediment filter remove the solid suspended particle such a rust & dust.
Step 5 : TFC RO Membrane
DISPRO TFC Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.
Step 6 : Post-carbon Filter
Silver Impregnated Carbon remove all toxic chemicals, chlorine and other parasites. Further improves the natural taste of water
Step 7: pH Booster (Alkaline)
pH is a factor that has a vital effect on our blood's capacity to uptake, carry and deliver oxygen to all parts of our body
Step 8 : Ultra Violet
U.V. has the ability to provide Bacterial Disinfection in water.
Filter Size/ Filter Life | PP Filter | 10"-5 Mic Sediment Filter (6 Months) |
Anti-Sealant Capsule | 6” (1 Year) | |
Sediment | Inline Fine Sand Filter (1 Year)* | |
Pm-Carbon | Inline Post Cartridge (1 Year)* | |
Membrane | 11"/7,200 LTR (2,800 gal) | |
80GPD TFC Membrane (1-2 Years)* | ||
Post-Carbon | Inline Activated Carbon Filter (1 Year) | |
pH Enhancer | 9" (1 Year)* | |
UV Lamp | Philips 11W | |
Booster Pump | 100 PSI Hitech/Kemflow/Equivalent | |
Tank Capacity | Cold Storage Capacity | 8 Liters |
Cooling System | Cooling Capacity | ≥ 12°C, 5 Liter Per hour |
RO Production Capacity | 15 -25 LPH | |
Temperature | 7 - 13°C | |
Condenser | Static | |
Refrigerant | R134A (CFC Free) | |
Consumption | 120 Watts | |
Flow Rate | 10 Ltr/Hour | |
Heating System | Heating Capacity | ≥ 90°C, 5 Liter Per hour |
Protection | Bimetal Thermostat | |
Consumption | 500W | |
Flow Rate | 4.4 Ltr/Hour | |
Electrical Supply | AC 220V / 1P / 50Hz | |
No. of Faucets D | 2 | |
Dimensions (mm) (W x Hx D) |
ABS Body | 1120 330 x330 |
Net Weight | 26kg | |
RO Stages | 7 Stages | |
As a continuing policy of products innovation at DISPRO, the above mentioned design and specification are subjects to change without any prior at any times |
