Domestic RO + PF

RO D-Top

Features

  • No Chemical Used
  • Intelligent Automatic Machine with Indicator
  • Suitable for Any Source of Feed Water (Having TDS 2000) I.E. Tap Water, Bore well Water or Storage Tank
  • Built in Adopter To Operate From 170-280 AC AC for Erratic Voltage Supply Protection
  • pH Enhancer Mineral Filter
  • TDS Controller/Adjustment
  • NSF Approved RO Spare*

Water Purification Process

Step 1: PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2: Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 3: Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4: Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 5: TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6: Mineral Booster :

Mineral is a factor that has a vital effect on the blood’s capacity to uptake, carry and deliver to all parts of our body.

Specification

Model D Top
RO Stages 5 Stage RO System
Operation Fully Automatic
UV Without UV
Filter Size/ Filter Life
Dimenions(Width/Height/Depth) 12 X 11.5 X 16.5(System) 9 LTR (Tank) 12 X 12 X 16(Shipping) Inch
Electical Consumption 24 WATT
1.0 A (220V 50 Hz) 24V Transformer
Net Weight 13 kg
No. of persons served 10
Product Recovery 33%
TDS Rejection (%) >90-95%

RO V-Top

Features

  • Economic Model
  • Non-Toxic Filter Housings made up of food grade polymers
  • Converts impure water to sweet pure drinking water
  • Food grade transparent water storage tank made up of Poly Carbonate material
  • Stored water available on demand, even in absence of electricity
  • Low cost of maintenance, electrical consumption & consumable
  • Treat the water of bore-well and overhead thanks and makes it drinkable
  • one of the few affordable technologies for the home that effectively kills the majority of bacteria, viruses, and other harmful microorganisms
  • Enhances the taste of water
  • Eliminates impurities that cause high blood pressure, kidney stones, indigestion, gastric bacterial diseases etc.

Water Purification Process

Step 1 : PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2 : Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 3 : Pre-Carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 4 : TFC RO Membrane :

Dispro RO Membrane removes dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 5 : Post Carbon Filter :

Mineral is a factor that has a vital effect on the blood’s capacity to uptake, carry and deliver to all parts of our body.

Specification

Model V-TOP DOLPHIN
RO Stages 5 Stage RO System
Operation Fully Automatic
UV Without UV
Power Consumption 240V / 50 Hz DC 36V(1.8 Lpm)
Dimenions(Width/Height/Depth) 350 X 310 X 475 mm
Electical Consumption 24 WATT
1.0 A (220V 50 Hz) 24V Transformer
Net Weight 10.0kg (28.6lb)
Production Capacity / Filtration Capacity 10 Ltr/hr (2.6 gal/hr)
Tank Capacity 9 Ltr
No. of persons served 10 to 15
Product Recovery 35 %
TDS Rejection (%) >90-96%

RO K-Top

Features

  • Economic Model
  • Non-Toxic Filter Housings made up of food grade polymers
  • Converts impure water to sweet pure drinking water
  • Food grade transparent water storage tank made up of Poly Carbonate material
  • Stored water available on demand, even in absence of electricity
  • Low cost of maintenance, electrical consumption & consumable
  • Treat the water of bore-well and overhead thanks and makes it drinkable
  • one of the few affordable technologies for the home that effectively kills the majority of bacteria,viruses, and other harmful microorganisms
  • Enhances the taste of water
  • Eliminates impurities that cause high blood pressure, kidney stones, indigestion, gastric bacterial diseases etc.

Water Purification Process

Step 1: PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2: Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 3: Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4: Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 5: TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6: Mineral Booster :

Mineral is a factor that has a vital effect on the blood’s capacity to uptake, carry and deliver to all parts of our body.

Specification

Model K-TOP NATURAL
RO Stages 6 Stage RO System
Operation Fully Automatic
UV Without UV
Power Consumption 240V / 50 Hz DC 36V(1.8 Lpm)
Dimenions(Width/Height/Depth) 342 X 342 X 455 mm
Electical Consumption 36 WATT
1.2 A (220V 50 Hz) 24V Transformer
Net Weight 10.0kg
Production Capacity / Filtration Capacity 10 Ltr/hr (2.6 gal/hr)
Tank Capacity 9 Ltr
No. of persons served 10 to 15
Product Recovery 35 %
TDS Rejection (%) >90-96%

RO Natural

Features

  • Economic Model
  • Non-Toxic Filter Housings made up of food grade polymers
  • Converts impure water to sweet pure drinking water
  • Food grade transparent water storage tank made up of Poly Carbonate material
  • Stored water available on demand, even in absence of electricity
  • Low cost of maintenance, electrical consumption & consumable
  • Treat the water of bore-well and overhead thanks and makes it drinkable
  • one of the few affordable technologies for the home that effectively kills the majority of bacteria,viruses, and other harmful microorganisms
  • Enhances the taste of water
  • Eliminates impurities that cause high blood pressure, kidney stones, indigestion, gastric bacterial diseases etc.

Water Purification Process

Step 1: PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2: Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 3: Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4: Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 5: TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6: pH Booster (Alkaline):

pH is a factor that has a vital effect on the blood's capacity to uptake, carry and deliver to all parts of our body.

Step 7: Ultra Violet (Optional Stage):

U.V. has the ability to provide Bacterial Disinfection in water.

Specification

Model Natural
RO Stages 5 Stage RO System
Operation Fully Automatic
UV Without UV
Power Consumption With Booster Pump 24W (1.8 Lpm)
Dimenions(Width/Height/Depth) 16.5 x 10.2 x 12inch419 x 259 x 305
Electical Consumption 36 WATT
1.2 A (220V 50 Hz) 24V Transformer
Net Weight 13
Tank Capacity 8 liters (2.1 gal)
No. of persons served 10 to 15
Product Recovery 35 %
TDS Rejection (%) 90 to 95 %

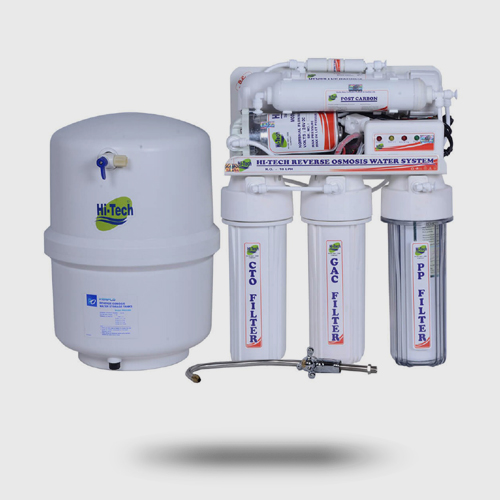

RO 15 AWT (Under-Sink)

Features

  • Economic Model
  • Produces 15 liters pure water per hour.
  • Removes active and inactive bacteria viruses and pyrogen
  • Low cost of maintenance
  • Low cost of electrical consumption Excellent service backup
  • 5 Mic. Sediment Pre - Filter
  • Granular Activated Carbon Filter Carbon Block Filter
  • 75 GPD RO T.F.C. Membrane
  • Post Carbon Filter
  • NFS Grade Storage Tank
  • Suitable for Modular Kitchen Under Sink Model
Features
5 mic. Sediment Pre - Filter

The porosity of 5 micron is effective in removing dirt, rust, dust sediments , & sand from the raw water.

Features
Granular Activated Carbon Filter

Granual activated carbon filter where in the carbon granual are silver impregnated which takes out 99% of the chlorine and organic chemicals. It provides enhanced reduction of taste, odor, and colour

Features
Carbon block Filter

It absorbs the organic matter, colour, odor and dissolved gases like chlorine from the water which is left out from GAC filter.

Features
75 gpd RO T.F.C. Membrane

The Reverse Osmosis element, a thin film composite ,(TFC) high quality, semi-permeable membrane made- up of polyamide with a micron porosity of 0.0001 which can eliminate 90 to 95% of the chemical & micro-biological impurities like total dissolved solids , bacteria ,viruses & pyrogen through the waste water outlet & can give a highly pure & safe potable drinking water in result.

Features
Post Carbon Filter

This filter rejects the objectionable taste and odor to enhance the quality of the final drinking water. We are using NSF approved post carbon to guarantee the taste of water

Features
NFS Grade Storage Tank

This NFS Grade Storage Tank stores purified water. Gives purified water through faucet with pressure.

Specification

Model R.O. 15 AWT
RO Stages 5 Stage RO System
Operation Fully Automatic
UV Without UV
Filter Size/ Filter Life
5 mic. Sediment Pre The porosity of 5 micron is effective in removing dirt, rust, dust sediments, sand & solid suspended particles from the water.
Granular Activated Carbon Filter It provides enhanced reduction of taste, odor, and co lour.
Carbon block Filter
Post Carbon Filter It Produce quality of the final drinking water.
Dimenions(Width/Height/Depth) 16 X 8.75 X 18(System) 11.5 X 16 (29 X 40 Tank) 16 X 19 X 16(Shipping) Inch
Electical Consumption 24 WATT
1.9 A (220V 50 Hz) 24V Transformer
Net Weight 18 kg
No. of persons served 15-25
Product Recovery 33%
TDS Rejection (%) 90-95%
Membrane 75 gpd RO T.F.C. Membrane. which can eliminate 90 to 95% of the chemical & micro-biological impurities.
PUMP 1.9 Lpm Pressure Pump
CAPACITY OF MEMBRANE TFC Membrane produces 15 liters per hour final Purified water & rejects 95 % of the impurities in the waste water line.
Storage Tank NFS Grade Storage Tank gives purified water through faucet with pressure
Tubes Tank N.S.F approved, leak proof connectors, fittings, tubes.
