• 9 Ltr. Blue Transparent Washable Storage Capacity Tank
• RO /RO +UV + pH + TDS Adjuster System
• 15 Lts./Hour High Purifying Capacity
• Extra Pre Filter attached for Extra Sand Filtration
• Computerized LED Indicator for Fully Auto On/Off
• Auto Membrane Backflusing at every start up of machine
• Powerful Anti-Oxidants & De-toxifier
• Reduces Cholesterol & Blood Sugar Level
• Restores pH Balance In Body
• Smaller Water ClusterSize
• Improves Blood Circulation
• Suitable for Any Source of Feed Water (Having TDS < 2000) I.E. Tap Water, Bore well Water or Storage Tank
• Built in Adopter To Operate From 170-280 AC
• AC for Erratic Voltage Supply Protection
• 5/6 Stage Filtration System
• pH Enhancer Mineral Filter
• TDS Controller/Adjustment
• NSF Approved RO Systems
• Antioxidant Alkaline Water Filter Cartridge

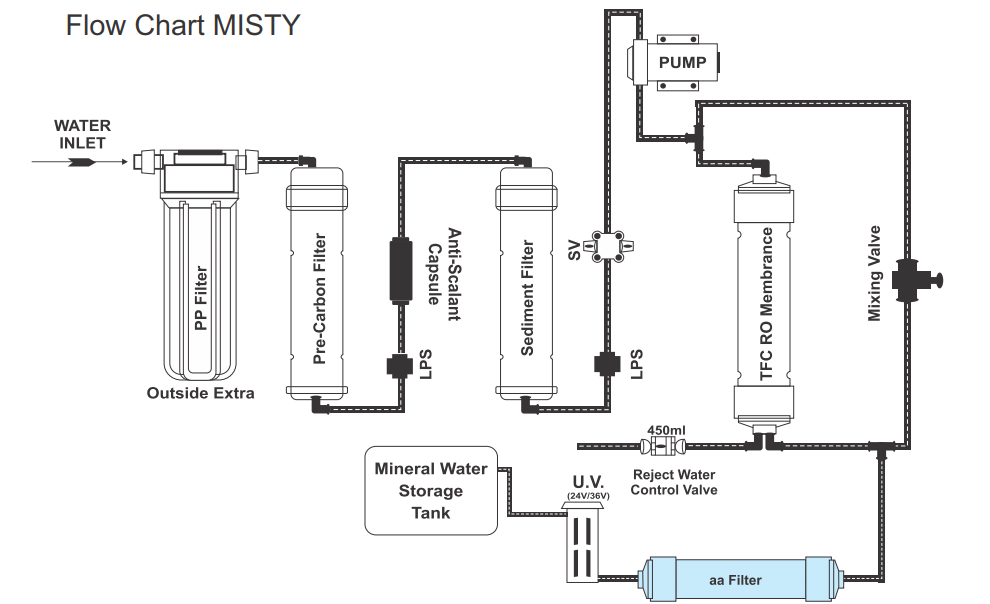

Step 1 : PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2 : Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 3 : Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4 : Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 5 : TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6 : pH Booster (Alkaline):

pH is a factor that has a vital effect on the blood's capacity to uptake, czarry and derliver to all parts of our body.

Step 7 : Ultra Violet (Optional Stage):

U.V. has the ability to provide Bacterial Disinfection in water.

---

Filter Size/ Filter Life	1st Stage Sediment Filter	10" - 5 Mic Poly Propylene Filter (6 Month)
	2nd Stage Pre Filter	10" - GAC 900 IV Coconut Shell Carbon (12 Month)
	3rd Stage Carbon Filter	10" - CTO Activated Carbon Block (12 Month)
	4th Stage Membrane	75 GPD Flimtech Dow (1-2 Year)
	5th Stage Post Carbon	10" - GAC Silver Implicated Coconut Shell Carbon (12 Month)
	6th Stage Alkaline	4" Antioxidant Alkaline Mineral Enhancer
	Booster Pump Storage	100 PSI E-Chen 24V
Tank Capacity	Storage	8 Liter (Hot 855 ml, Cold 650 ml, Normal 6500ml)
Cooling System	Cooling Capacity	≤ 12°C, 5 Liter Per hour
	RO Production Capacity	15 - 25 LPH
	Temperature	7 - 13°C
	Consumption	75 Watts
	Flow Rate	10 Ltr/Hour
Heating System	Heating Capacity	≤ 90°C, 5 Liter Per hour
	Protection	Bimetal Thermostat
	Consumption	550 Watts
	Flow Rate	4.4 Ltr/Hour
Electrical Supply		AC 220V / 1P / 50Hz
No. of Faucets		3
System Dimension L x W x H (Inch)	ABS Body	22 x 9 x 17 (Inches)
Net Weight		14 kg
RO Stages		6 Stages
As a continuing policy of products innovation at DISPRO, the above mentioned design and specification are subjects to change without any prior at any times

• 9 Ltr. Blue Transparent Washable Storage Capacity Tank
• RO /RO +UV + pH + TDS Adjuster System
• 15 Lts./Hour High Purifying Capacity
• Extra Pre Filter attached for Extra Sand Filtration
• Computerized LED Indicator for Fully Auto On/Off
• Auto Membrane Backflusing at every start up of machine
• Powerful Anti-Oxidants & De-toxifier
• Reduces Cholesterol & Blood Sugar Level
• Restores pH Balance In Body
• Smaller Water ClusterSize
• Improves Blood Circulation
• Suitable for Any Source of Feed Water (Having TDS < 2000) I.E. Tap Water, Bore well Water or Storage Tank
• Built in Adopter To Operate From 170-280 AC
• AC for Erratic Voltage Supply Protection
• 5/6 Stage Filtration System
• pH Enhancer Mineral Filter
• TDS Controller/Adjustment
• NSF Approved RO Systems
• Antioxidant Alkaline Water Filter Cartridge

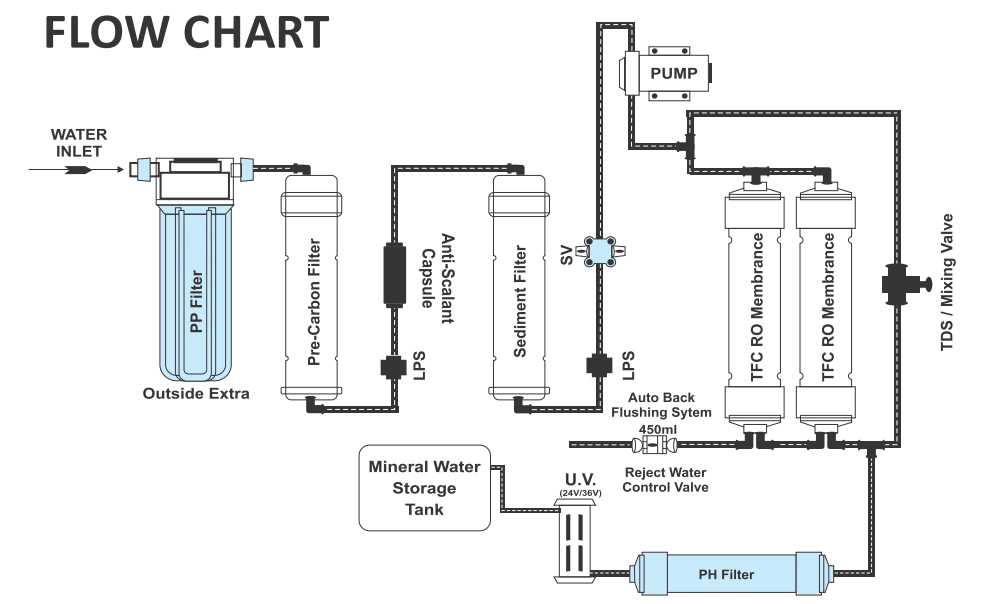

Step 1 : PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2 : Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 3 : Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4 : Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 5 : TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6 : pH Booster (Alkaline):

pH is a factor that has a vital effect on the blood's capacity to uptake, czarry and derliver to all parts of our body.

Step 7 : Ultra Violet (Optional Stage):

U.V. has the ability to provide Bacterial Disinfection in water.

Step 8 : Ultra Violet

U.V. has the ability to provide Bacterial Disinfection in water.

---

Filter Size/ Filter Life	PP Filter	10"-5 Mic Sediment Filter (6 Months)
	Anti-Sealant Capsule	6” (1 Year)
	Sediment	Inline Fine Sand Filter (1 Year)*
	Pm-Carbon	Inline Post Cartridge (1 Year)*
	Membrane	11"/7,200 LTR (2,800 gal)
		80GPD TFC Membrane (1-2 Years)*
	Post-Carbon	Inline Activated Carbon Filter (1 Year)
	pH Enhancer	9" (1 Year)*
UV Lamp		Philips 11W
	Booster Pump	100 PSI Hitech/Kemflow/Equivalent
Tank Capacity	Cold Storage Capacity	8 Liters
Cooling System	Cooling Capacity	≥ 12°C, 5 Liter Per hour
	RO Production Capacity	15 -25 LPH
	Temperature	7 - 13°C
	Condenser	Static
	Refrigerant	R134A (CFC Free)
	Consumption	120 Watts
	Flow Rate	10 Ltr/Hour
Heating System	Heating Capacity	≥ 90°C, 5 Liter Per hour
	Protection	Bimetal Thermostat
	Consumption	500W
	Flow Rate	4.4 Ltr/Hour
Electrical Supply		AC 220V / 1P / 50Hz
No. of Faucets D		2
Dimensions (mm) (W x Hx D)	ABS Body	1120 330 x330
Net Weight		26kg
RO Stages		7 Stages
As a continuing policy of products innovation at DISPRO, the above mentioned design and specification are subjects to change without any prior at any times

• Hot & Cold Water Dispenser with Inbuilt RO System
• Hot & Cold Water Dispenser with Inbuilt RO System
• No Chemical Used
• Intelligent Automatic Machine with Indicator
• Suitable for Any Source of Feed Water (Having TDS 2000) I.E. Tap Water, Bore well Water or Storage Tank
• Built in Adopter To Operate From 170-280 AC AC for Erratic Voltage Supply Protection
• 3 Faucets for Purified Water
• 25 LPH RO System Inbuilt
• 13 Litre Heavy SS 304 Storage Tank
• Drainage System
• pH Enhancer Mineral Filter
• TDS Controller/Adjustment
• NSF Approved RO Systems
• Antioxidant Alkaline Water Filter Cartridge

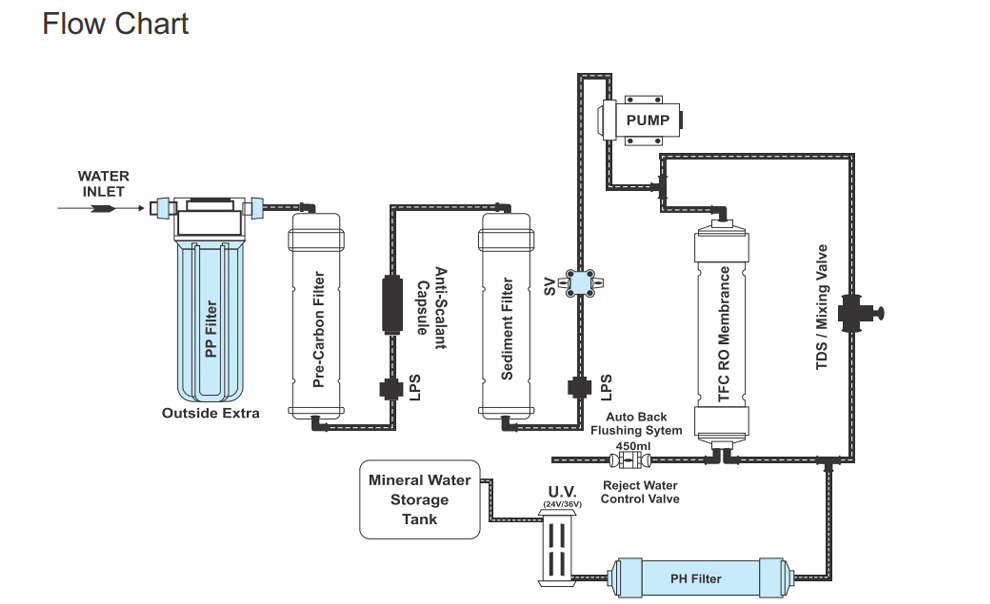

Step 1: PP Filter (Outside RO):

P.P filter remove Solid Suspended Particles like sand, iron rust, copper rust of pipelines, fibers or any visible impurities.

Step 2: Pre-carbon Filter:

Pre-carbon Filter can remove excess chlorine, organic mater, color, odor and floating particles.

Step 3: Anti-Scalant Capsule:

Anti-Scalant Capsule increase RO Membrane life.

Step 4: Sediment Filter :

Sediment filter remove the solid suspended particle such rust & dust.

Step 5: TFC RO Membrane :

Dispro RO Membrane remove dissolved water contaminants such as heavy metals, waterborne microorganisms and harmful organic chemicals etc. The concentrated rejected contaminated water is drained out through the reject line.

Step 6: pH Booster (Alkaline):

pH is a factor that has a vital effect on the blood's capacity to uptake, carry and deliver to all parts of our body.

Step 7: Ultra Violet (Optional Stage):

U.V. has the ability to provide Bacterial Disinfection in water.

Filter Size/ Filter Life	PP Filter	10"-5 Mic Sediment Filter (6 Months)
	Anti-Sealant Capsule	6” (1 Year)
	Sediment	Inline Fine Sand Filter (1 Year)*
	Pm-Carbon	Inline Post Cartridge (1 Year)*
	Membrane	11"/15,000 (5,600 gal)
		1W GPO x 2 No TFC Membrane (1-2 Years)
	Post-Carbon	Inline Activated Carbon Filter (1 Year)
	pH Enhancer	9" (1 Year)*
UV Lamp		Philips 11W
	Booster Pump	300 PSI HITECH/KEMFLOW
Tank Capacity	Cold Storage Capacity	13 Liters
Cooling System	Cooling Capacity	≥ 12°C, 10 Liter Per hour
	RO Production Capacity	25 LPH
	Temperature	7 - 13°C
	Condenser	Static
	Refrigerant	R134A
	Consumption	150 Watts
	Flow Rate	15 Ltr/Hour
Heating System	Heating Capacity	≥ 90°C, 5 Liter Per hour
	Protection	Bimetal Thermostat
	Consumption	500W
	Flow Rate	4.4 Ltr/Hour
Electrical Supply		AC 220V / 1P / 50Hz
No. of Faucets D		3
Dimensions (mm) (W x Hx D)	ABS Body	1150 0 350 0 340
Net Weight		40 Kg
RO Stages		7 Stages
As a continuing policy of products innovation a DISPRO, the above mentioned design and specifications are subjects to change without any prior notice.
